| 원래 장소: | 광동, 중국 (본토) |
|---|---|
| 브랜드 이름: | DDW |
| 인증: | ISO9001 , CE , RoHS , FCC |
| 모델 번호: | DDW-LW460HN12 |
| 최소 주문 수량: | 2pcs |
| 가격: | Negotiable |
| 포장 세부 사항: | 채워 있는 거품, 그리고 나서 목제 팔레트 팩과 첫번째 층 카톤 팩 |
| 배달 시간: | 3 지불에 일로 일합니다 |
| 지불 조건: | 서쪽인 전신환, L/C (신용장) 유럽연합, 알리바바 무역 보험 |
| 공급 능력: | 달 당 3, 000 PC |
| 상품 이름: | 비디오 월 장비 | 아니오 상영되세요.: | 9개 스크린 |
|---|---|---|---|
| 표시색: | 8Bit, 16.7M | 전원 공급기: | AC100~240V 50/60 Hz |
| 패널 폭: | 1021.98 밀리미터 | 전체 물리적 베젤: | 3.5 밀리미터 |
| 서피스: | 반대로 섬광 | 갱신 속도: | 60Hz |
| 하이 라이트: | 초협 베젤 비디오 월,다중 화면 비디오 월 |
||

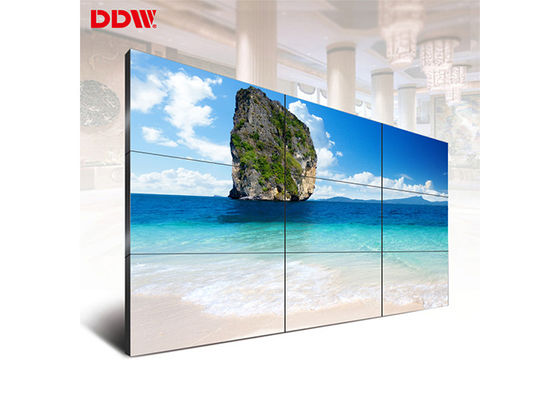

9 Screen Video Wall Equipment / HD Security Multiple Tv Video Wall
Video Wall Equipment Application area
Shopping mall, Airport, Plice office, Railway station.
All the places where require high display advertisement or surveillance monitoring.
Video Wall Equipment Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Splicing image processing RS-232 RJ45 loop-circuit input/output.
6. Input by remote control with wire, mobile receiver head.
Video Wall Equipment main parameters
Video Wall Equipment Specifications
| Model No: |
DDW-LW460HN12 Video Wall Equipment |
| LCD Technology | Samsung a-Si TFT-LCD |
| Active Screen Diagonal | 46" |
| Pixel Pitch(WxH) |
0.5302x0.5302mm |
| Active Display Area(WxH) |
1018.08×572.67mm |
| Panel Dimension(WxHxD) |
1021.98x576.57x66.9mm |
| Total Bezel Width | 3.5 mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backlight System | LED |
| Luminance(nits) | 700 cd/sqm |
| Contrast | 5000:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
LCD Video Wall Display Board Specification
| Support | PC | color | 24bit |
| signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
| DVI | color | 24bit | |
| HDMI | Line synchronization range | 30-80KHZ | |
| DP | Field synchronization range | 50-75HZ | |
| Interface | input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
FAQ
Q: Are you a manufacturer or trading company?
A:We are a manufacturer who has been specializing in producing LCD display for years.
Q: How does your factory do regarding quality control?
A:Quality is priority.DDW people always attach great importance to quality controlling from the
very beginning to the very end. We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
Q: What is your after-sale service?
A: We offer 100% guarantee on our product .
Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days according to the size and quantities
of your order.
Q:what brand of screen are you using?
A:we are using Samsung ,LG BOE screen.
