1920x1080 결의안 46 비디오 월 디스플레이, 다중 디스플레이 비디오 월 500 NIT
제품 상세 정보:
| 원래 장소: | 광동, 중국 (본토) |
| 브랜드 이름: | DDW |
| 인증: | ISO9001 , CE , RoHS , FCC |
| 모델 번호: | DDW-LW460HN09 |
결제 및 배송 조건:
| 최소 주문 수량: | 2pcs |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 채워 있는 거품, 그리고 나서 목제 팔레트 팩과 첫번째 층 카톤 팩 |
| 배달 시간: | 3 지불에 일로 일합니다 |
| 지불 조건: | 서쪽인 전신환, L/C (신용장) 유럽연합, 알리바바 무역 보험 |
| 공급 능력: | 달 당 3, 000 PC |
|
상세 정보 |
|||
| 결의안: | 1920*1080 | 밝기: | 500마리의 nits |
|---|---|---|---|
| 상품 이름: | 46 비디오 월 디스플레이 | 입력 전압: | AC 220v-250v |
| 전체 물리적 베젤: | 5.3 밀리미터 | 갱신 속도: | 60Hz |
| 열 분산: | 819 BTU / Ｈ (최대) | ||
| 강조하다: | 다중 전시 비디오 월,이음새가 없는 lcd 영상 벽 |
||
제품 설명

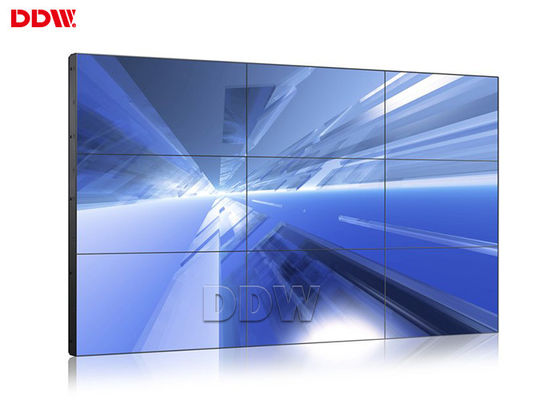

1920x1080 Resolution 46 Video Wall Display , Multi Display Video Wall 500 Nits
46 Video Wall Display basic informations:
- 46 Video Wall Display With original LG, Samsung panel, has a stylish design, lighter weight, easy to handle and install;
- Adapting modular components, making maintenance operations and parts replacement very easily;
- The installation method: floor standing;
- Panel life: above 50000 hours; Certificate: FCC, CE, ROHS, IP65; Warranty: 1 year;
- 7x24x365 keep working;
46 Video Wall Display main parameters
1. Original DDW commercial grade lcd video wall display panel
2. 500 nits brightness,MEGA DCR contrast.HD video wall unit--- High brightness,high contrast,high gamut .
3. FHD physical resolution 1920x1080
4. Only 5.3 mm ultra narrow bezel, high quality ,practical ,good vision effect.
5. Interface --- 2 x HDMI input, DVI input, VGA input, AV input, DP loop in loop out, RS232 input output
46 Video Wall Display Key features:
1. Support a variety of signal ports.
2. Built-in splicing module, Support splice function
3. Support creating one window PIP across the screen, roaming service, scaling,PIP
4. Support matrix joint control.
5. Unique DNX motion supplement image processing technology,
6. Input by remote control with wire, mobile receiver head.
46 Video Wall Display Specifications:
| Model No: | DDW-LW460HN09 46 Video Wall Display |
| LCD Technology | LG IPS LCD |
| Active Screen Diagonal | 46" |
| Total Bezel Width | 5.3 mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | LED |
| Luminance(nits) | 500 cd/sqm |
| Contrast | MEGA DCR |
| Viewing Angle | H 178°|V 178° |
| Panel Dimension(WxHxD) |
1023.98x578.57x79.5mm |
| White Point | 10,000 K |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000 h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | lower than 250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 0.85 |
| Storage Temperature | -20-60°C | -4-140°F |
| Storage Humidity | 85% non-condensing |
46 Video Wall Display Specifications
| Support | PC | Color | 24bit |
| Signal | Line synchronization range | 30-80KHZ | |
| Field synchronization range | 50-75HZ | ||
|
DVI HDMI DP |
Color | 24bit | |
| Line synchronization range | 30-80KHZ | ||
| Field synchronization range | 50-75HZ | ||
| Interface | Input | VGA x 1 | 15pin D-Sub |
| DVI x 1 | DVI-I | ||
| DP x 1 | Display Port | ||
| HDMI x 2 | HDMI-19 pin | ||
| Output | PANEL | LVDS 36Pin/2.0 | |
| DP out | DP loop out | ||
| Power | Input power | DC24V/12V/5V | |
| Drive panel | 5V/12V | ||
| Power mode | Normal working mode, power saving mode | ||
| Other | OSD | Chinese, English and other languages (other languages can be added as required) | |
